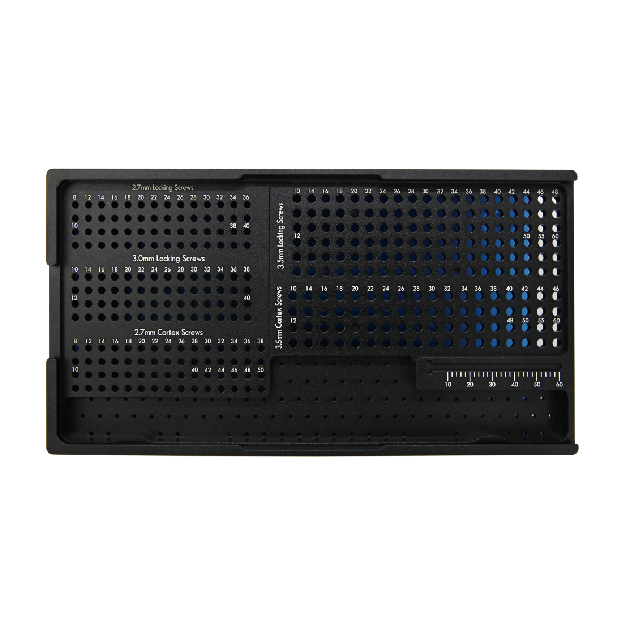

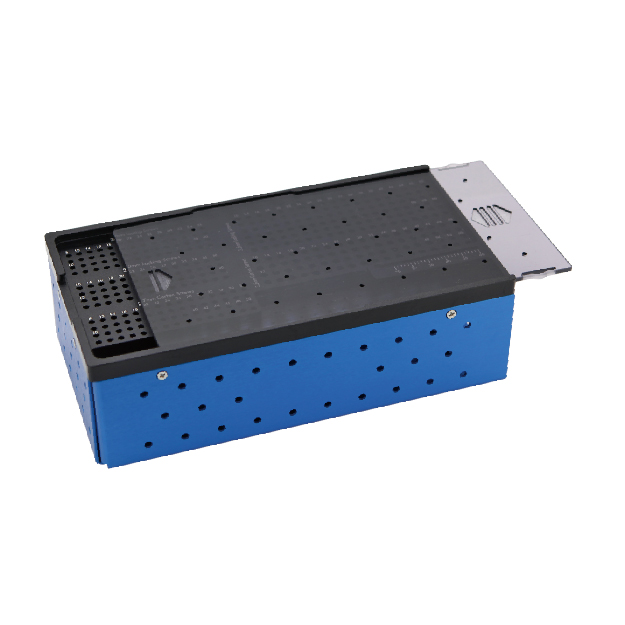

Locking Screws Caddy 2.7-3.0-3.5mm
235X125X73mm
Description
Screw Specifications for Screw Caddy
| 2.7mm Locking Self-Tapping Screws T8 Torx |
2.7mm Cortex Self-Tapping Screws T8 Torx |
3.5mm Locking Self-Tapping Screws T15 Torx |
3.5mm Cortex Self-Tapping Screws T15 Torx |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | L | Holes | Code | L | Holes | Code | L | Holes | Code | L | Holes |
| LS2708 | 8mm | 2 | CSTT2708 | 8mm | 2 | LS3510 | 10mm | 3 | CSTT3510 | 10mm | 2 |
| LS2710 | 10mm | 2 | CSTT2710 | 10mm | 2 | LS3512 | 12mm | 3 | CSTT3512 | 12mm | 2 |
| LS2712 | 12mm | 4 | CSTT2712 | 12mm | 4 | LS3514 | 14mm | 6 | CSTT3514 | 14mm | 4 |
| LS2714 | 14mm | 4 | CSTT2714 | 14mm | 4 | LS3516 | 16mm | 6 | CSTT3516 | 16mm | 4 |
| LS2716 | 16mm | 4 | CSTT2716 | 16mm | 4 | LS3518 | 18mm | 6 | CSTT3518 | 18mm | 4 |
| LS2718 | 18mm | 4 | CSTT2718 | 18mm | 4 | LS3520 | 20mm | 6 | CSTT3520 | 20mm | 4 |
| LS2720 | 20mm | 4 | CSTT2720 | 20mm | 4 | LS3522 | 22mm | 6 | CSTT3522 | 22mm | 4 |
| LS2722 | 22mm | 4 | CSTT2722 | 22mm | 4 | LS3524 | 24mm | 6 | CSTT3524 | 24mm | 4 |
| LS2724 | 24mm | 4 | CSTT2724 | 24mm | 4 | LS3526 | 26mm | 6 | CSTT3526 | 26mm | 4 |
| LS2726 | 26mm | 4 | CSTT2726 | 26mm | 4 | LS3528 | 28mm | 6 | CSTT3528 | 28mm | 4 |
| LS2728 | 28mm | 4 | CSTT2728 | 28mm | 4 | LS3530 | 30mm | 6 | CSTT3530 | 30mm | 4 |
| LS2730 | 30mm | 4 | CSTT2730 | 30mm | 2 | LS3532 | 32mm | 6 | CSTT3532 | 32mm | 4 |
| LS2732 | 32mm | 2 | CSTT2732 | 32mm | 2 | LS3534 | 34mm | 6 | CSTT3534 | 34mm | 4 |
| LS2734 | 34mm | 2 | CSTT2734 | 34mm | 2 | LS3536 | 36mm | 6 | CSTT3536 | 36mm | 4 |
| LS2736 | 36mm | 2 | CSTT2736 | 36mm | 2 | LS3538 | 38mm | 6 | CSTT3538 | 38mm | 4 |
| LS2738 | 38mm | 2 | CSTT2738 | 38mm | 2 | LS3540 | 40mm | 6 | CSTT3540 | 40mm | 2 |
| LS2740 | 40mm | 2 | CSTT2740 | 40mm | 2 | LS3542 | 42mm | 6 | CSTT3542 | 42mm | 2 |
| CSTT2742 | 42mm | 2 | LS3544 | 44mm | 3 | CSTT3544 | 44mm | 2 | |||
| CSTT2744 | 44mm | 2 | LS3546 | 46mm | 3 | CSTT3546 | 46mm | 2 | |||
| CSTT2746 | 46mm | 2 | LS3548 | 48mm | 3 | CSTT3548 | 48mm | 2 | |||
| CSTT2748 | 48mm | 2 | LS3550 | 50mm | 3 | CSTT3550 | 50mm | 2 | |||
| CSTT2750 | 50mm | 2 | LS3555 | 55mm | 3 | CSTT3555 | 55mm | 2 | |||
| LS3560 | 60mm | 3 | CSTT3560 | 60mm | 2 | ||||||
| 3.0mm Locking Self-Tapping Screws T10 Torx |
|||||||||||
| Code | L | Holes | |||||||||
| LS3010 | 10mm | 2 | |||||||||
| LS3012 | 12mm | 2 | |||||||||
| LS3014 | 14mm | 4 | |||||||||
| LS3016 | 16mm | 4 | |||||||||
| LS3018 | 18mm | 4 | |||||||||
| LS3020 | 20mm | 4 | |||||||||
| LS3022 | 22mm | 4 | |||||||||
| LS3024 | 24mm | 4 | |||||||||
| LS3026 | 26mm | 4 | |||||||||
| LS3028 | 28mm | 4 | |||||||||
| LS3030 | 30mm | 4 | |||||||||
| LS3032 | 32mm | 4 | |||||||||
| LS3034 | 34mm | 4 | |||||||||
| LS3036 | 36mm | 4 | |||||||||
| LS3038 | 38mm | 2 | |||||||||
| LS3040 | 40mm | 2 | |||||||||
