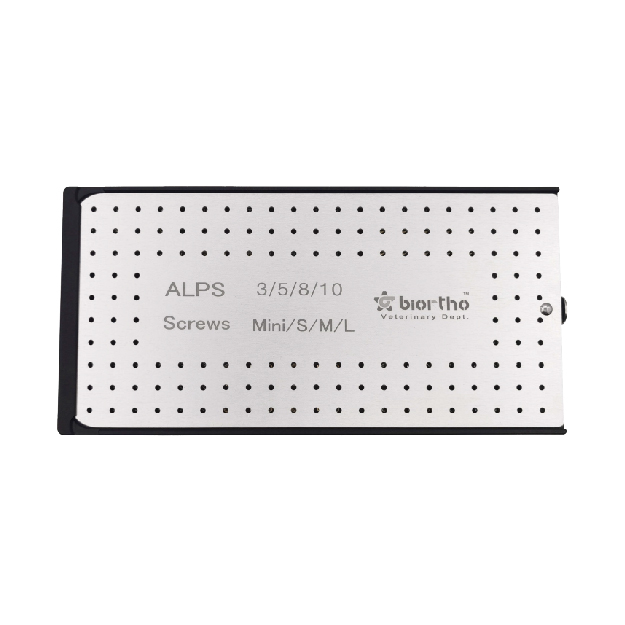

BIORTHO ALPS Screws Caddy
225X115X50mm
Description

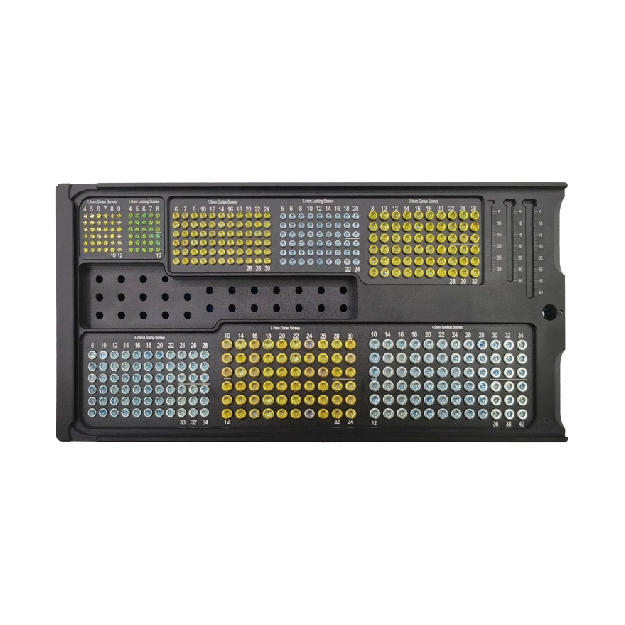

Screw Specifications for Screw Caddy
| 1.1mm Cortex Screw Self-tapping 1.5mm Cruciform |
2.4mm Cortex Screw Self-tapping T10 Torx |
1.6mm Locking Self-Tapping Screws 1.5mm Cruciform |
2.4mm Locking Self-Tapping Screws T6 Torx |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | L | Holes | Code | L | Holes | Code | L | Holes | Code | L | Holes |
| TCS1104 | 4mm | 6 | TCS2408 | 8mm | 6 | B1604 | 4mm | 6 | B2405 | 5mm | 6 |
| TCS1105 | 5mm | 6 | TCS2410 | 10mm | 6 | B1605 | 5mm | 6 | B2406 | 6mm | 6 |
| TCS1106 | 6mm | 6 | TCS2412 | 12mm | 6 | B1606 | 6mm | 6 | B2408 | 8mm | 6 |
| TCS1107 | 7mm | 6 | TCS2414 | 14mm | 6 | B1607 | 7mm | 6 | B2410 | 10mm | 6 |
| TCS1108 | 8mm | 3 | TCS2416 | 16mm | 6 | B1608 | 8mm | 3 | B2412 | 12mm | 6 |
| TCS1109 | 9mm | 3 | TCS2418 | 18mm | 6 | B1610 | 10mm | 3 | B2414 | 14mm | 6 |
| TCS1110 | 10mm | 3 | TCS2420 | 20mm | 6 | B2416 | 16mm | 6 | |||
| TCS1112 | 12mm | 3 | TCS2422 | 22mm | 3 | B2418 | 18mm | 3 | |||
| TCS2424 | 24mm | 3 | B2420 | 20mm | 3 | ||||||
| TCS2426 | 26mm | 3 | B2422 | 22mm | 3 | ||||||
| TCS2428 | 28mm | 3 | B2424 | 24mm | 3 | ||||||
| TCS2430 | 30mm | 3 | |||||||||
| TCS2432 | 32mm | 3 | |||||||||
| 1.5mm Cortex Screw Self-tapping T6 Torx |
2.7mm Cortex Screw Self-tapping T10 Torx |
3.2mm Locking Self-Tapping Screws T10 Torx |
4.0mm Locking Self-Tapping Screws T10 Torx |
||||||||
| Code | L | Holes | Code | L | Holes | Code | L | Holes | Code | L | Holes |
| TCS1506 | 6mm | 6 | TCS2710 | 10mm | 3 | B3208 | 8mm | 6 | B4010 | 10mm | 3 |
| TCS1507 | 7mm | 6 | TCS2712 | 12mm | 3 | B3210 | 10mm | 6 | B4012 | 12mm | 3 |
| TCS1508 | 8mm | 6 | TCS2714 | 14mm | 6 | B3212 | 12mm | 6 | B4014 | 14mm | 6 |
| TCS1510 | 10mm | 6 | TCS2716 | 16mm | 6 | B3214 | 14mm | 6 | B4016 | 16mm | 6 |
| TCS1512 | 12mm | 6 | TCS2718 | 18mm | 6 | B3216 | 16mm | 6 | B4018 | 18mm | 6 |
| TCS1514 | 14mm | 6 | TCS2720 | 20mm | 6 | B3218 | 18mm | 6 | B4020 | 20mm | 6 |
| TCS1516 | 16mm | 6 | TCS2722 | 22mm | 6 | B3220 | 20mm | 6 | B4022 | 22mm | 6 |
| TCS1518 | 18mm | 6 | TCS2724 | 24mm | 6 | B3222 | 22mm | 6 | B4024 | 24mm | 6 |
| TCS1520 | 20mm | 3 | TCS2726 | 26mm | 6 | B3224 | 24mm | 3 | B4026 | 26mm | 6 |
| TCS1522 | 22mm | 3 | TCS2728 | 28mm | 3 | B3226 | 26mm | 3 | B4028 | 28mm | 6 |
| TCS1524 | 24mm | 3 | TCS2730 | 30mm | 3 | B3228 | 28mm | 3 | B4030 | 30mm | 3 |
| TCS1526 | 26mm | 3 | TCS2732 | 32mm | 3 | B3230 | 30mm | 3 | B4032 | 32mm | 3 |
| TCS1528 | 28mm | 3 | TCS2734 | 34mm | 3 | B3232 | 32mm | 3 | B4034 | 34mm | 3 |
| TCS1530 | 30mm | 3 | B3234 | 34mm | 3 | B4036 | 36mm | 3 | |||
| B4038 | 38mm | 3 | |||||||||
| B4040 | 40mm | 3 | |||||||||
